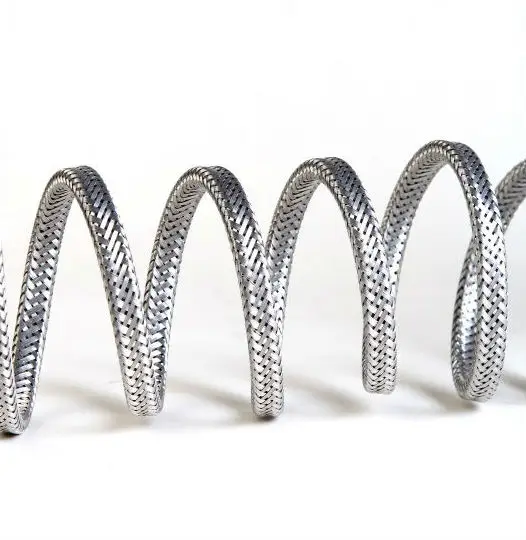

Electric self regulating heating cable/ explosion proof cable

FOB Reference Price:Get Latest Price
$0.50 - $0.72 / Meter | 100 Meter/Meters (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
Model Number:
Conductor Material:
tinned copper wire
Insulation Material:
Aluminum magnesiun Alloy
Maximum maintain temperature:
Maximum exposure temperature:
Minimum installation temperature:
Max resistance of braid:
Bending radius:
25.4mm at 20℃
Wire Core Structure:
7*0.32, 7*0.42, 7*0.5, 19*0.3
Conductive Plastic Layer:
Common PTC, Flame Retardant PTC
Supply Ability
Supply Ability:
100000 Meter/Meters per Week
Packaging & Delivery
Shanghai Ningbo
Video Description
Product Description

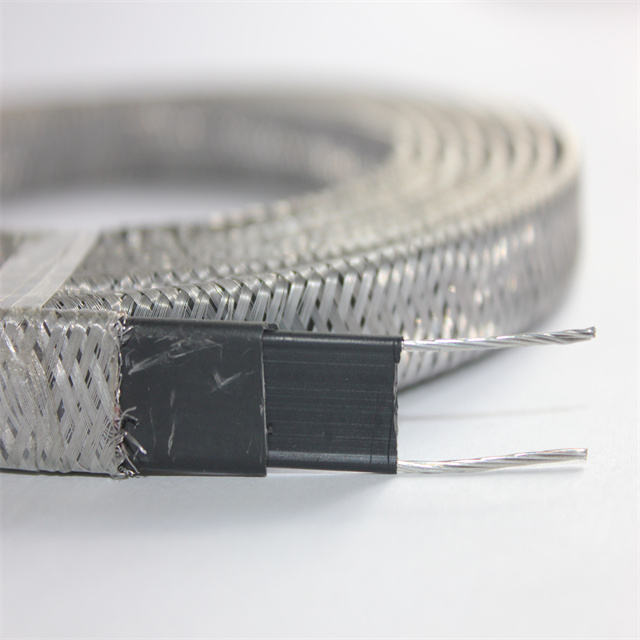

DWL heating cable provides the most versatility in heat trace designs and applications. Constructed of a semiconductor heater matrix extruded between parallel bus wires, a self-regulating cable adjusts its output to independently respond to ambient temperatures all along its length. As temperature increasing, the heater's resistance increases which lower the output wattage. Conversely, as the temperature decreasing, the resistance decreases and the cable produces more heat. So it does not need thermostat in some applications. It will never overheat or burnout even when wrapped by itself (overlapped). It can also be cut to any length. The result - an energy efficient heating cable.

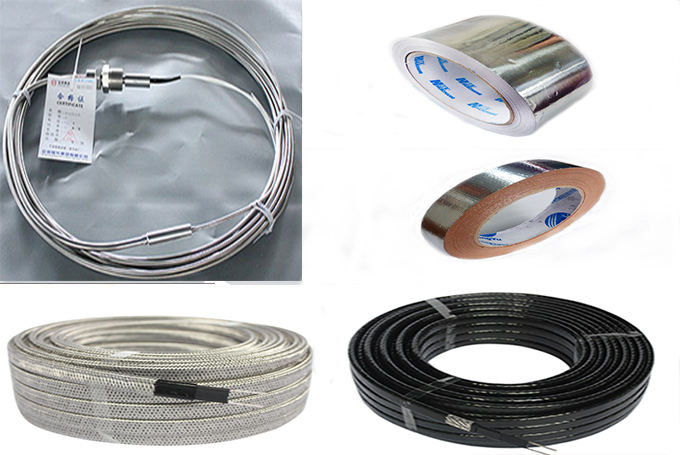

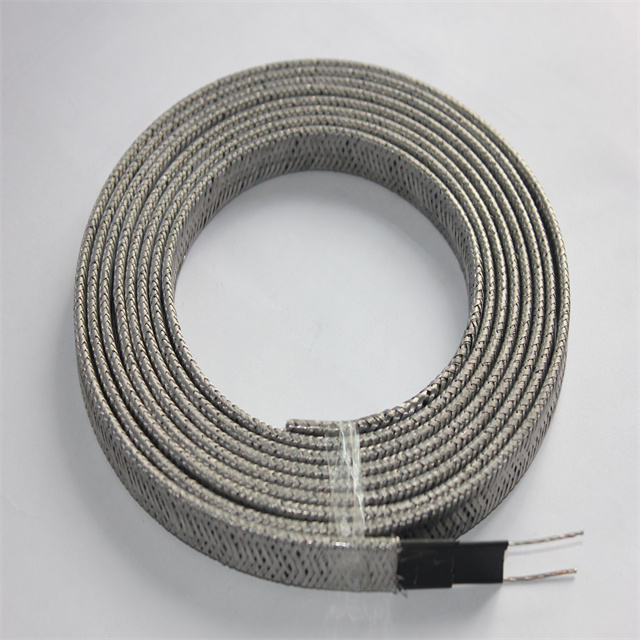

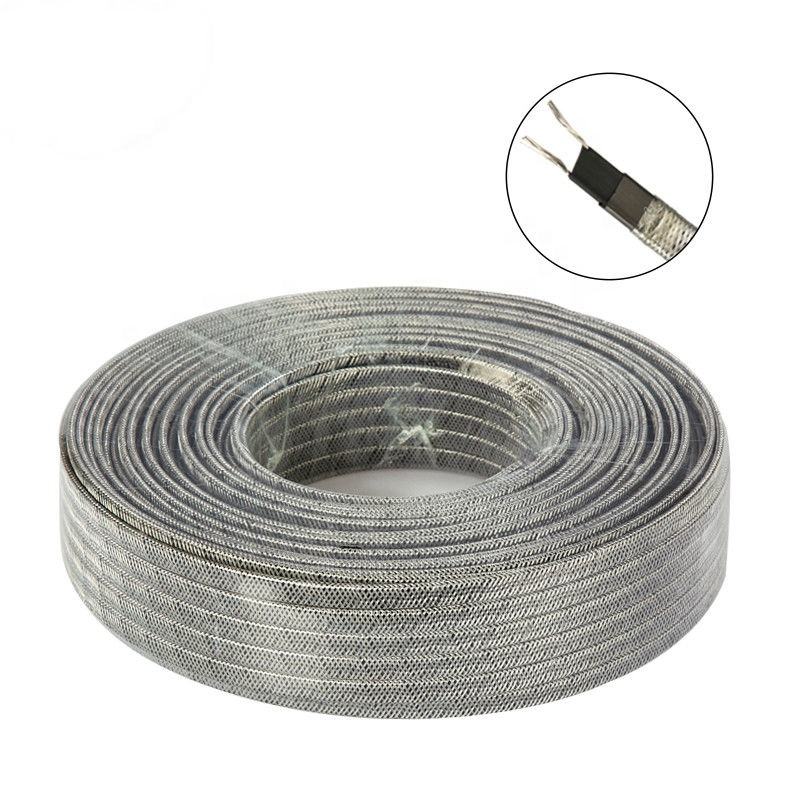

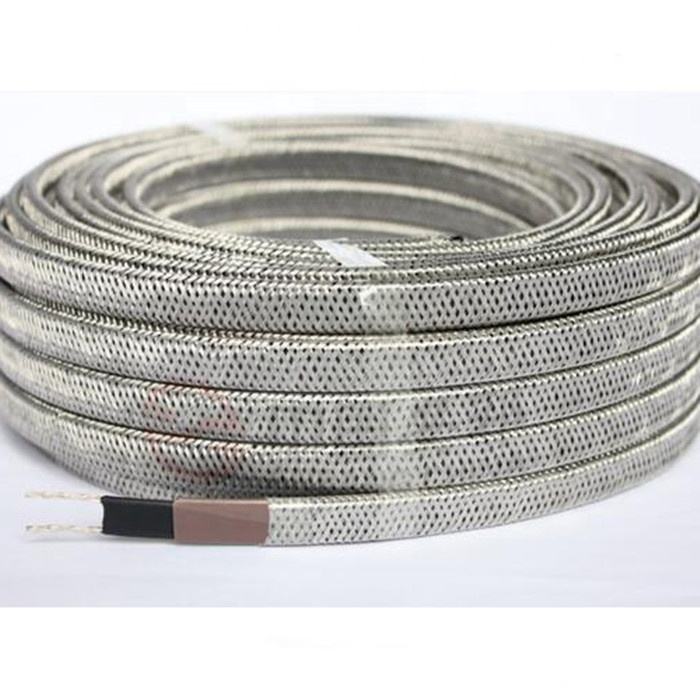

Detailed Images


1.Long life time: PTC semi-conductive matrix with high quality and excellent technology.
2.Low energy consumption: Due to unique PTC property, the cable adjust the output power respond to ambient temperature.
3.Excellent heat resistance: PTC semi-conductive matrix is treated by irradiation crosslinking reaction. High insulation resistance.
4.Cut to length: PTC semi-conductive matrix is composed of the infinite parallel connection of carbon particles, allowing it to be cut to the exact length required.
5.Easy for installation: Linear cable, complex installation available, never overheat when overlapped.
6.Low starting current: PTC 3 layer co-extruded technology, low starting current and low Attenuation rate.
7.Cable durable: UV protection, high and low temperature resistant, weather resistant.

Maintain highest
Temperature (°C)
Operating voltage (V)
length (m)


DWL heating cable is ideally used for process temperature maintenance and frost protection of regular diameter pipelines, tanks, valves, flanges, roof & gutter de-icing and other application where low temperature is needed. It is suitable for hazardous area, cable with fluoropolymer outer jacket can also be used in non-hazardous area and corrosive area.

Packing & Delivery

Packaging Details: individual box

Lead Time : 20-25 days

Our Service
Our Exhibitions
Our Company
Company profile

Welcome to Anbang, built in 2004, Register capital to be a RMB103million. Anbang group is a professional production of various types of electric tracing cables enterprise, located in Tianchang City, Chuzhou, Anhui province, which is 110km far away from Nanjing Airport, Headquarters is located in Beijing world trade center. We are the leading enterprise in the field of electrical heating.

Our factory covers 63000 square meters and own more than 300 employees.Our enterprise through the ISO9001:2008 quality management system certification; ISO14000 environment management certification. The products have CE,ROHS,EMC certification,

We have advanced equipments, high technology and an excellent quality inspection system that strictly performsunder the quality control of ISO9001. Our main products: electric heating cable; electric underfloor heating mats; self-regulation heating cable MI heating cable etc. are popular for indoor floor warm use and outdoor snow melting use; pipeline freeze protection. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.

The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.Title goes here.Title goes here.


Frequently Asked Questions

1. What is trace heating (heat trace)?
Electric trace heating (heat trace) is the application of a compensating heat source to a pipe, surface or vessel, to maintain a specified temperature.

2. How does trace heating work?
Electric heat trace / surface heating replaces the losses of heat from a surface, to allow temperature maintenance of the product, which thermal insulation alone can not maintain.

3. What is constant wattage heating tape?
Constant wattage heating tape exist in various forms, of which the more recent zonal parallel circuit devices are the most convenient, since these may be 'cut to length', within practical limits, on site. The output of constant wattage tape is virtually constant along the tape length, due to the consistent nature of the wire element.

4. What is self regulating heating tape?
Self limiting / self regulating heating tape adjusts heat output to equal the heat loss from the pipe work. As pipe temperature falls under no-flow conditions or due to the decreases in external or internal temperature the electrical conductivity of the semi-conductive polymer core increases causing the tape to increase output. As the pipe temperature increases under flow conditions or as a result of increasing external or internal temperature the conductivity reduces and output decreases.

5. Do I need to use thermal insulation?
Thermal insulation is recommended on all heat trace applications. Without Insulation surface heat losses can increase approx 4-5 times.

6. Can I use electric surface heating to heat raise pipes and vessels?
Electric Surface Heating can be used to heat raise pipes and vessels. However, it is usually more economic to maintain heating on a pipeline than to provide a heating system designed to raise from cold. Where it is necessary to make provision for heat raising the time allowed should normally be in the range 12 – 24 hours to avoid high loadings.

7. Should I use a thermostat?
Trace heating thermostats are recommended for use with all surface heating systems. Temperature control can reduce system operating costs by as much as 90%

8. Do I have to spiral the trace heating onto the pipe?
The application of the heat trace tape depends on the required wattage. As Anbang manufacture an extensive range of heating tapes most applications can simply be straight traced, reducing costs of materials and installation time without compromising on operational requirements.

9. Can the trace heating tape be cut to length?
Anbang Trace Heating's range of Parallel Circuit Heating Tapes can all be 'Cut-to-Length' to suit pipework.

10. Can electric trace heating tapes be joined?
Parallel circuit constant wattage heating tapes can be joined using either the relevant jointing kits or a trace heating junction box found under ancillaries within the products section.

11. Can I use heat trace on plastic pipes?
When using heat trace on plastic pipes ensure that the cable does not exceed 12 watts per metre and is fitted with earth protection. The heat trace tape should be used in conjunction with a thermostat. NOTE: PVC cables and PVC fixing tape MUST NOT be used on PVC pipes.

12. Do I have to allow extra heat for pumps and valves?
If the surface area of the pump is substantially greater than that of the adjoining pipework then extra heating cable may need to be considered (depending on wattage of cable installed). Pumps and valves may be heat traced with extra heating tape to allow removal of the valve or pump.

13. Do you carry out installation work?
Anbang Trace Heating Ltd offer a full Installation and commissioning service carried out by experienced trace heating engineers.

14. Can you design a full surface heating system for me?
Anbang can design your complete trace heating requirement.

15. Can you design and make a specialised heating jacket for me?
Anbang manufacture custom made insulated and non-insulated heating jackets, mats and pads for many applications of up to 400°C. All products can be manufactured to suit customer specific application requirements.

16. Do you make products for Hazardous Areas?
Anbang hold approvals for manufacture of Hazardous Area trace heating products.

17. Does my trace heating system require maintenance?
Generally, no maintenance of our trace heating systems is required but it is recommended that the system is checked for operational and electrical integrity periodically or prior to the winter or production run, depending on application.

18. How do I test my trace heating system is working properly?
System checks depend on the system installed, constant wattage systems can be fully checked for insulation resistance and continuity. Self regulating systems can only be checked for insulation resistance. For assistance on system testing please contact us.
