Concrete Ground Preheating Heating Mat With Digital Thermostat

FOB Reference Price:Get Latest Price
$9.00 - $15.00 / Pieces | 100 Piece/Pieces (Min. Order)
Material:
Other
Report Suspicious Activity
Overview
Quick Details
Color:
white, black
Place of Origin:
Anhui, China
Brand Name:
AnBang
Model Number:
AB03H-2
Type:
Floor Heating Parts
Floor Heating Part Type:
Floor Heating Thermostats
Power Supply:
AC12V 24V AC220/230V 50/60Hz
Color of housing:
white,black
Backlight:
blue
Switching differential:
±0.5K
Load current:
3A or 16A optional
Limitation Range:
5~60°C(factory setting:35°C)
Switch differential:
0.5°C~10°C adjustable factory setting 1°C
Application:
Room underfloor heating thermostat
Function:
7 Day Programmable
Certifications:
EAC,CE,ROHS
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing or as per customer's requirements
Port
Shanghai
Product Description

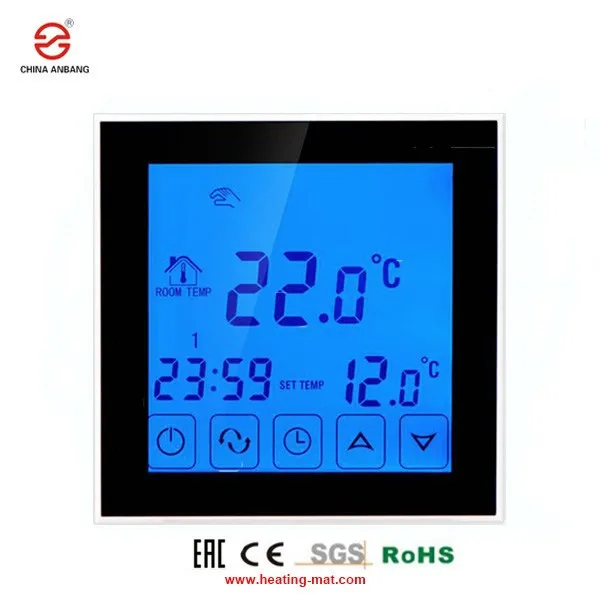

AB03H-2 digital weekly programmable large LCD touch screen floor heating thermostat is weekly circulation, this heating room thermostat can let you set 6 periods with different setted temperature, also you can select manual mode or periods programming control mode. It is used controlling electrical heating equipments and electric control valve in water-based heating system.

Application

For the control of warm-water( floor) heating systems and direct electric heating systems used in living room,bathroom,kitchen,hotel and resorts or commercial buildings, residential buildings........

Features

*Touch-screen operating interface

*7-day programmable function for energy-saving operation

*On/off control output for heating device

*Symbol indicator when heating is on

*Temperature limitation function for protecting the floor

*"Key-lock" function for protecting the setted parameters ( especially suitable for Public Places)

*Current room temperature displaying when the thermostat is switched-off


Technical Data
AB03H-2
Technical Data
Power Supply
AC230V (AC110V / AC24V available)
Display accuracy
±0.5ºC
Probe sensor
Rubber-thermoplastic NTC sensor, cable length is 3m
Power Consumption
<0.3W
Load current
3A(water heating),16A(electric heating)
Limitation Range
5~60°C(factory setting:35°C)
Switch differential
0.5°C~10°C adjustable factory setting 1°C
Output
Switch relay
Insulating condition
Normal environment
Running program
Set per 1 week as a cycle
Installation
Wall mounted
Sample
Available. just tell us the specifications
OEM service
Large order or long term cooperate relationship provide the customized service
Services
Free design logo and installation guide
Delivery time
Normally within 7-15 days, large order should be negotiated.
Approval
CE,RoHS,EAC



AB03H-1 Room Thermostat

This is our AB03H-1 thermostat. It's mainly used in 16A electric floor heating systems.



AB03H-1 Thermostat Back Wiring Diagram

Terminal 1(L1) and 2(N1) are electric loading appliances controlled by thermostat.

Terminal 3(N) and 4(L) are AC230V power supply of the thermostat.

Terminal 5 and 6 (NTC) are external temperature sensor.



AB03H-1 Thermostat with an Floor Sensor

AB03H-1 thermostat is with two senors, one is external floor sensor, the other one is an internal air sensor.

Packing & Delivery
Certifications
Our Company

Company Profile

Welcome to Anbang, built in 2004, Register capital to be a RMB103million. Anbang group is a professional production of various types of electric tracing cables enterprise, located in Tianchang City, Chuzhou, Anhui province, which is 110km far away from Nanjing Airport, Headquarters is located in Beijing world trade center. We are the leading enterprise in the field of electrical heating.


Our factory covers 63000 square meters and own more than 300 employees.Our enterprise through the ISO9001:2008 quality management system certification; ISO14000 environment management certification. The products have CE,ROHS,EMC certification,


We have advanced equipments, high technology and an excellent quality inspection system that strictly performs under the quality control of ISO9001. Our main products: electric heating cable; electric underfloor heating mats; self-regulation heating cable MI heating cable etc. are popular for indoor floor warm use and outdoor snow melting use; pipeline freeze protection. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.


The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.
