150 W/M2 USA Foil Heater System - Ultra Thin Heated Floor Mat for Wooden Floor

FOB Reference Price:Get Latest Price
$6.00 - $12.00 / Square Meter | 100 Square Meter/Square Meters (Min. Order)
Material:
Other
Shipping:
Support Sea freight
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Floor Heating Parts
Floor Heating Part Type:
Floor Heating Mats
Place of Origin:
Anhui, China
Brand Name:
Anbang
Model Number:
ABAF
Color:
silvery
Insulation Material:
fluoropolymer inner insulation
Application:
kitchen,bathroom, bedroom, living room, indoor use
Output:
100W/㎡, 150W/㎡, 200W/㎡
Voltage:
110V - 230V
Size:
0.5 meter width, 2~24 meters length
Cable construction:
Twin Conductor
Cable spacing:
50mm
Cold lead:
2.5m length
Cable Dia.:
2.0mm
Warranty:
15 years
Supply Ability
Supply Ability:
50000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
White box and export carton.
Port
Shanghai Ningbo
Product Description

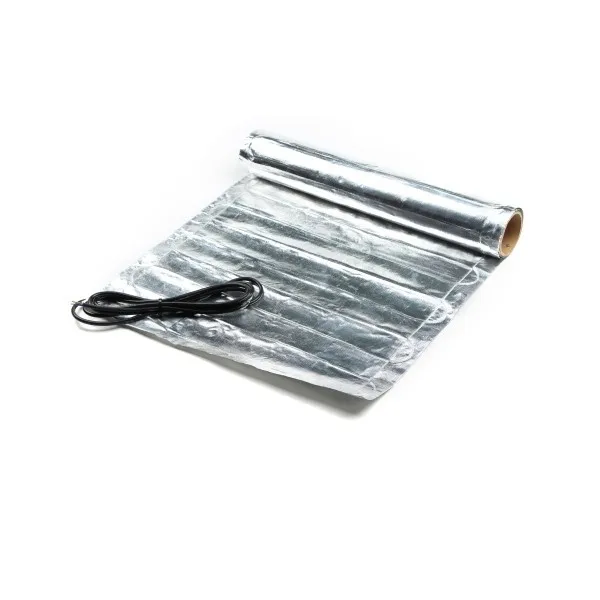

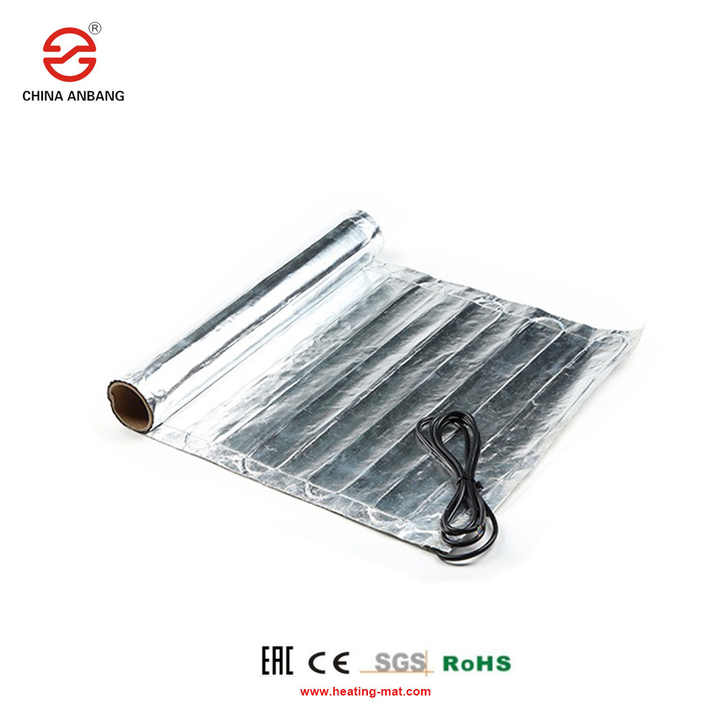

Foil Heater System -- Electric foil Underfloor heating system

Electric underfloor heating system for laminate, carpet, vinyl, engineered wood and other floating floor finishes.

Foil underfloor heating is an ideal heater for larger areas and for use with so-called floating floors such as laminate, vinyl, engineered wood, and carpet.

Simple to install, the Foil Heater delivers a consistent heat distribution with the thermal properties of the reinforced aluminum foil used in the heater helping to spread the heat evenly.

Electric foil heating mats can be used both as a primary or secondary heating source in all rooms and projects that adhere to Building Regulations.

Detailed Images

Floor Type

1. Wood / Laminate

2. Vinyl

3. Carpet

Build Type

1. Renovation

2. New construction

Subfloor Type

1. Screed & Concrete Floors

2. Timber suspended & Batten floors

Specifications
Power Output (W)
Mat size
 (m*m)
Area
 (m²)
Inner Box Size
 (cm)
Quantity per carton(pcs)
Carton Size (cm)
TXLP-FMAT/150-1.0
150
0.5*2
1




13.5*13.5*51.5




8pcs/ctns




55.5*28.5*53.5
TXLP-FMAT/150-1.5
225
0.5*3
1.5
TXLP-FMAT/150-2.0
300
0.5*4
2
TXLP-FMAT/150-2.5
375
0.5*5
2.5
TXLP-FMAT/150-3.0
450
0.5*6
3
TXLP-FMAT/150-3.5
525
0.5*7
3.5
TXLP-FMAT/150-4.0
600
0.5*8
4




15.5*15.5*51.5




6pcs/ctns




47*33.5*53.5
TXLP-FMAT/150-4.5
675
0.5*9
4.5
TXLP-FMAT/150-5.0
750
0.5*10
5
TXLP-FMAT/150-6.0
900
0.5*12
6
TXLP-FMAT/150-7.0
1050
0.5*14
7
TXLP-FMAT/150-8.0
1200
0.5*16
8
TXLP-FMAT/150-9.0
1350
0.5*18
9


18.5*18.5*51.5


4pcs/ctns


38.5*38.5*53.5
TXLP-FMAT/150-10
1500
0.5*20
10
TXLP-FMAT/150-11
1650
0.5*22
11
TXLP-FMAT/150-12
1800
0.5*24
12

1. Each one into one box
2. Different size of carton for different size of mat
3. Port: Shanghai or Ningbo
4. Delivery: by sea, by air, by train, by truck or by international express.

1,EACH PIECE PACKING IN WHITE BOX.
2,DELIVERY DATE:20 DAYS AFTER RECEIVING DEPOSIT.
3,PAYMENT METHOD:100% PAYMENT BEFORE DELIVERY.

Key Benefits

1. Installed directly under the floor finish

No self-levelling required

2. No raise to floor levels


Super-thin, fully earthed flat aluminum foil will not raise floor levels

3. Fits around objects


Wire based system, can be adapted to fit around objects, no need for complicated wiring

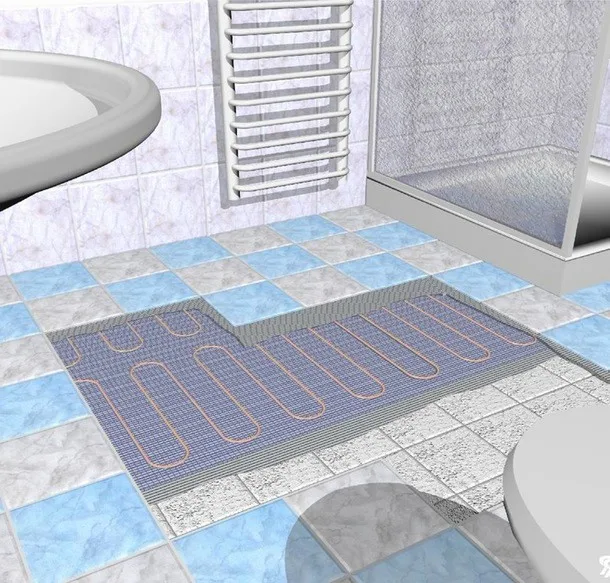

BATHROOM

KITCHEN

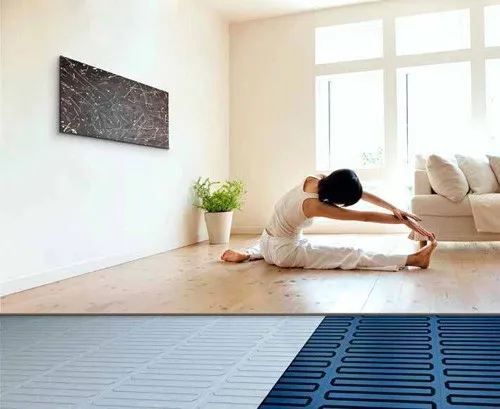

LIVING ROOM

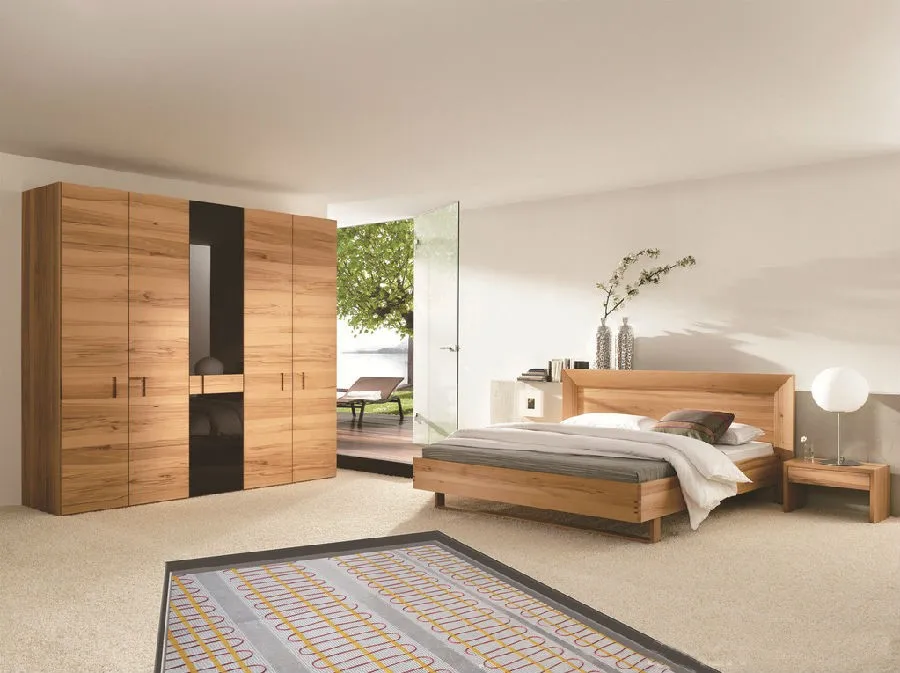

BEDROOM

AISLE

STAIRS

Packing & Delivery
Our Company

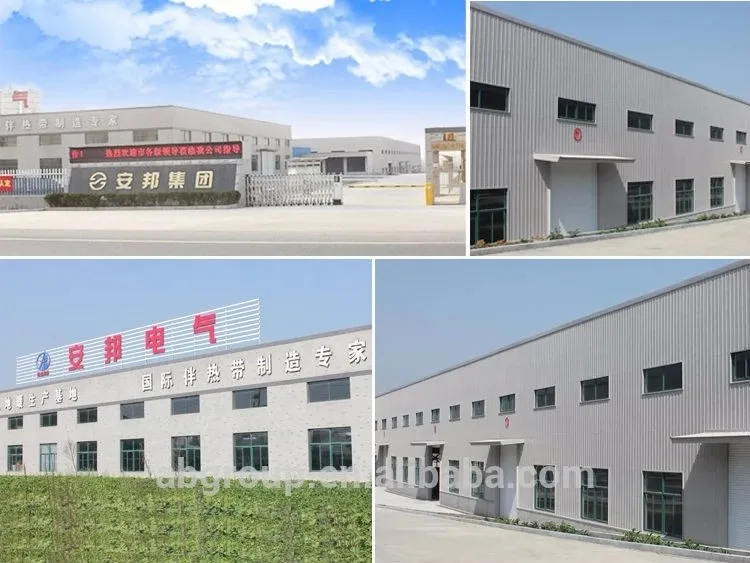

Company Profile


Welcome to Anbang, built in 2004, Register capital to be a RMB103million. Anbang group is a professional production of various types of electric tracing cables enterprise, located in Tianchang City, Chuzhou, Anhui province, which is 110km far away from Nanjing Airport, Headquarters is located in Beijing world trade center. We are the leading enterprise in the field of electrical heating.





Our factory covers 63000 square meters and own more than 300 employees.Our enterprise through the ISO9001:2008 quality management system certification; ISO14000 environment management certification. The products have CE,ROHS,EMC certification.

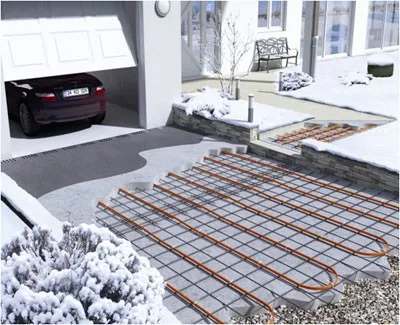

We have advanced equipments, high technology and an excellent quality inspection system that strictly performs under the quality control of ISO9001. Our main products: electric heating cable; electric underfloor heating mats; self-regulation heating cable MI heating cable etc. are popular for indoor floor warm use and outdoor snow melting use; pipeline freeze protection. Our mainly markets for America, Europe, The Middle East and Asia neighboring countries.


The company has always attached importance to technical innovation and quality management, focus on the introduction of the outstanding talented person and the advanced equipment, now our products of high quality and because of its superior performance. We sincerely hope to establish business relations with customers from all over the world.

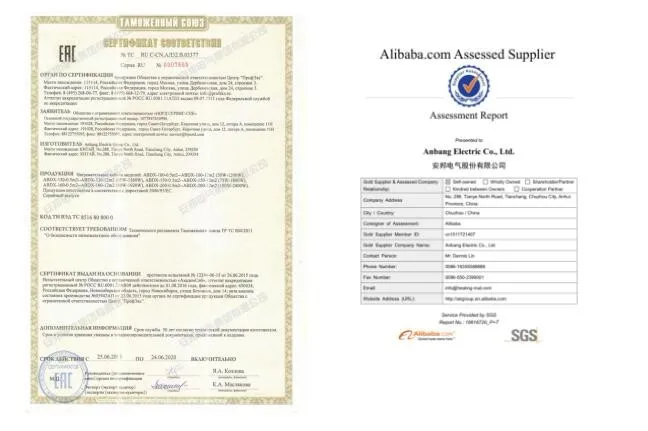

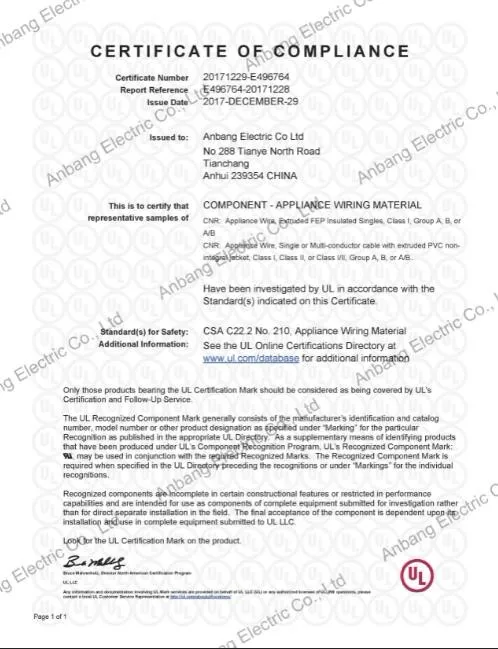

Certifications
FAQ
1.Can I place a sample order first?

Yes, we will quote you different prices for small, medium and large quantity. You can order with different price for different quantity.
2.How to place the order?

Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
3.What is the lead time for mass production after sample approved?

15 workdays after sample confirmed.
4.How to send us the products?

We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.
5.Can you do OEM and ODM for us?

Yes, we are professional in providing OEM and ODM service.We support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions.
6.What is your trading term? And what payment way are accepted?

We always do FOB term, and you could make the payment by T/T, Paypal,Western Union.So just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
